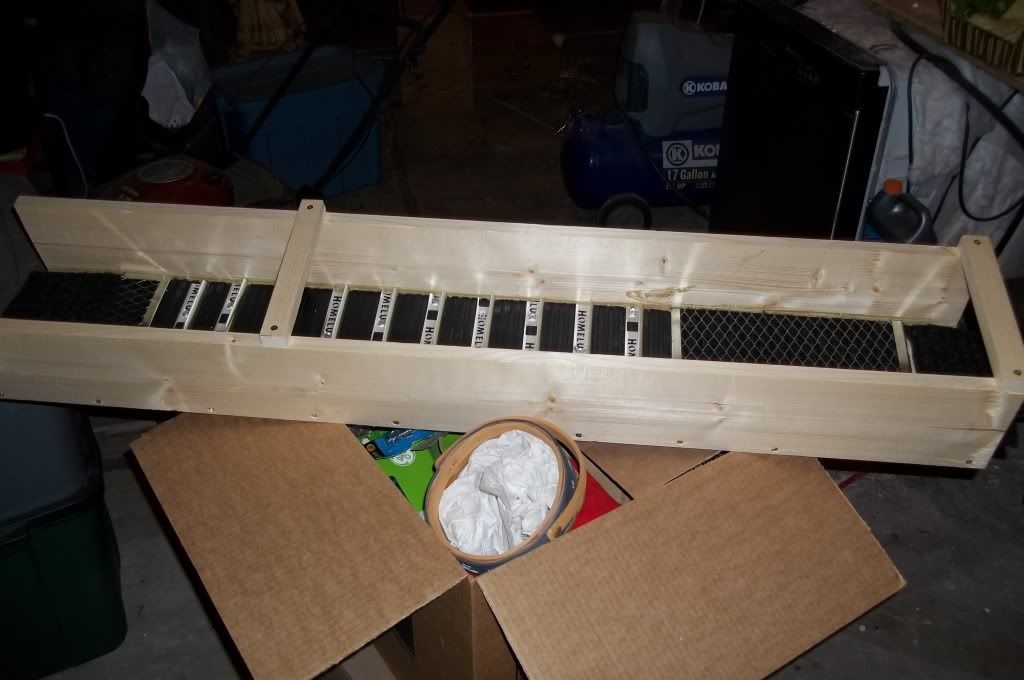

    Built my own sluice box... Not pretty.

    Was at Home Depot today and thought I'd pick up some materials to throw together a sluice box.

    From reading threads on designs and materials, I had a pretty good idea of how to make one, but I didn't find the "perfect" pieces, but figured I'd try it anyway and see what I find.

    The rubber mat is the one thing I wasn't happy with; it is too shallow from what I've seen.

    I will use the sluice only for processing buckets of material I bring home from interesting places I find while metal detecting...

    Feel free to critique as I have thick skin...




  2. #2
    us
    Nov 2011
    Santa Clarita, California
    49
    3 times
    All Types Of Treasure Hunting

    Re: Built my own sluice box... Not pretty.

    Expanded metal is to small and thin, matting is shallow, riffles are flat and worthless and have holes that create turbulence that will flush gold out, and to top it off it's wood so it will get nice and heavy when wet and warp on you. I would start over...

    Hope this helps. Edson

  3. #3
    us
    Jun 2009
    Blue Ridge, South Carolina
    815
    280 times

    Re: Built my own sluice box... Not pretty.

    Its not that bad at all for a first sluice and I am sure it will work fine once you make a couple improvements.

    Start by sealing the sides of the riffles where they meet the board with something like liquid nail. Otherwise gold will wash out there. Next, make sure you water proof it. I prefer several coats of paint or decking wood stain then polyurethane. A higher raised expanded mesh would work better, but you can try that one and see how it does. I have used metal lathe mesh over grooved carpeting before and that trapped super fines very well.

    Since you're new to sluicing, try to go out with someone who knows the ropes and can help you set it up, it will make things much easier till you get the hang of it. And take some pics!

    Sample till you find the hot spot, then mine it till its gone! Then start over...

  4. #4
    us
    Jan 2012
    Moscow, ID
    Tesoro Lobo SuperTraq
    161
    66 times
    Prospecting

    Re: Built my own sluice box... Not pretty.

    Thanks guys!

  5. #5
    Charter Member
    us
    My Hearts Desire

    Nov 2010
    Camptonville, CA
    GMT&GM3 Whites MXT Pro, Shadow X5, Fisher 1280, OMG and the TDI
    988
    373 times
    Prospecting

    Re: Built my own sluice box... Not pretty.

    considering the old timers used rocks or branches for there boxes that's a fine lookin first time sluice box

    now check the tailings after yoour done using it with a pan and see if ya lost any
    Democracy is in its greatest danger when the public realizes it can vote itself benefits, Melman

  6. #6
    us
    Jan 2012
    Moscow, ID
    Tesoro Lobo SuperTraq
    161
    66 times
    Prospecting

    Re: Built my own sluice box... Not pretty.

    I used aluminum tile edging about 1/2" high and rounded, I spaced them 2.25" apart. Is that at least OK?

    I can get the proper expanded metal from Ace, and the local prospecting store has the V-rib mat, so that's no big deal, either...

  7. #7
    us
    Bazooka Goldtrap enthusiast

    Jan 2012
    Centennial, Colorado
    Sluices: Bazooka Goldtrap Prospector, Bazooka Goldtrap Sniper, Bazooka Goldtrap SuperMini, Angus Mackirk Expedition, custom metal sluice (retired!), Gold-n-Sand Xtream Hand pump, occasional gold cube
    2,942
    1807 times
    Prospecting

    Re: Built my own sluice box... Not pretty.

    Honestly all the time you are putting into this seems a waste to me. Go buy a well designed sluice and put your time into prospecting!!
    ...it is too about havin' the gold!

  8. #8
    us
    Jan 2012
    Moscow, ID
    Tesoro Lobo SuperTraq
    161
    66 times
    Prospecting

    Re: Built my own sluice box... Not pretty.

    Well, what's the fun in that?

    I like to tinker in my garage and there is a certain satisfaction in creating something and then using it to find gold...

    I used to be an Aviation Structural Tech in the Navy, so I could create the ultimate sluice out of aluminum, if I had the brake and shears in my garage...

  9. #9
    us
    Jan 2012
    Pinal Mountains,Arizona
    Garrett Groundhog-2012-1st MD. White's Goldmaster V/Sat-2nd-MD-2013
    1,018
    323 times
    Prospecting

    Re: Built my own sluice box... Not pretty.

    Go to youtube and put in the search bar :
    progressive sluice.
    Watch the video,then optin to the website and you will recieve the free plans.
    I built mine for a total cost $4.99,but i had some material laying around.
    Anyway,mine looks just like yours, basically,and works great.
    4 foot by 10.5 inches.

    Does exactly what it was designed to do.
    Used polyurethane to water tight it.
    Have gone through 5/5 gallon buckets of product.
    Lots of water in my back yard.
    Not warped at all.


    It's OK, it's over, now change your shorts.

  10. #10
    us
    Jan 2012
    Moscow, ID
    Tesoro Lobo SuperTraq
    161
    66 times
    Prospecting

    Re: Built my own sluice box... Not pretty.

    I took it out and used it today and got nothing; not a flake, not a speck... Nothing.

    Of course, I also panned and used the metal detector and got nothing with those either...


  11. #11
    us
    Jun 2009
    Blue Ridge, South Carolina
    815
    280 times

    Re: Built my own sluice box... Not pretty.

    Idowa, keep with it. I don't want to mention how long it took me to find gold from when i started, it is embarrassing! But if you keep at it, it will eventually pay off. And once you start finding a little, usually you can then hone in on better ground.
    Sample till you find the hot spot, then mine it till its gone! Then start over...

  12. #12
    us
    Jan 2012
    Moscow, ID
    Tesoro Lobo SuperTraq
    161
    66 times
    Prospecting

    Re: Built my own sluice box... Not pretty.

    After watching sluicing videos for a couple of hours, I realized I was doing it all wrong...

    I was only classifying my material down to 3/8" and it was just clogging up the sluice.

    Plus, I thought you just ran material through, then picked out the gold pieces trapped in the mat, carpet, and riffles.

    I saw a video of a guy using a Keene, and he ran a few buckets of fines through, then took apart the sluice, cleaned it out into a bucket, then panned that material to get the gold.

    Which is confusing, since I thought the sluice was supposed to eliminate the time consuming panning process??

  13. #13
    us
    Bazooka Goldtrap enthusiast

    Jan 2012
    Centennial, Colorado
    Sluices: Bazooka Goldtrap Prospector, Bazooka Goldtrap Sniper, Bazooka Goldtrap SuperMini, Angus Mackirk Expedition, custom metal sluice (retired!), Gold-n-Sand Xtream Hand pump, occasional gold cube
    2,942
    1807 times
    Prospecting

    Re: Built my own sluice box... Not pretty.

    Still gotta pan...but just the little bit your sluice holds onto :-)
    ...it is too about havin' the gold!

  14. #14
    Charter Member
    us
    IT COULD BE A VALUABLE PRIZE "YOU NEVER KNOW"

    Nov 2006
    N.E. Ohio on lake Erie
    ** I use only top name brand detectors *****
    6,195
    1163 times
    ANY TYPE OF TREASURE HUNTING THAT PUTS MONEY IN MY POCKET

    Re: Built my own sluice box... Not pretty.

    Quote Originally Posted by KevinInColorado
    Honestly all the time you are putting into this seems a waste to me. Go buy a well designed sluice and put your time into prospecting!!
    I hate to say this but for me what ....kevin... said here about go buy a well made one is the only way for me to go....... I love most type of T hunting but i hate to build things and it does take a lot of time away from you for prospecting............ You only get so much time here on earth so spend it hunting for Gold & Treasure not building things that do not do a good job for you . Like Sandman says always get the best equipment you can afford ..... So you do not waste your time useing equipment that is not up to par..
