Eurotek Pro modification to fix PinPoint mode

CC_IN_CA

Jr. Member
Jun 5, 2005
44
46
Detector(s) used
Tecknetics Eurotek Pro
Primary Interest:
Metal Detecting
My Eurotek Pro works great when discriminating, but has a firmware bug in pinpoint mode. It constantly kicks out of pinpoint mode into discriminate mode on almost every target. Some have complained its a bad membrane switch, but I have proven that is not the case. The problem is lack of debounce firmware for the pinpoint button. One can deal with momentary key bounce in firmware or hardware. I added hardware fix and the problem was cured. The fix is to add a .47uf capacitor from the pinpoint switch to ground. This eliminates microsecond make and break contacts being seen by the computer chip causing it to jump out of pinpoint mode.

Below is a pic shows two pins to connect .47uf capacitor indicated by voltmeter leads. The red lead is on the pinpoint signal on second pin. The black lead is on the ground signal on the fifth pin. Add capacitor underneath pushing capacitor leads up through holes from below, and soldering into place. If you use an electrolytic capacitor make sure its lead polarity is correct.

Disassembly is easy by removing three screws and slowly removing back panel. Take care you do not pull on flat ribbon cable attaching the two halfs. Remove the battery and one screw is under that, while other two screws are on case back.

Be aware this will void your warranty. I decided to try fixing this instead of sending it back as I am sure all units have this problem and factory could not repair an engineering design flaw. I've put four hours detecting use on machine since adding fix, and only seen pinpoint problem occur once (probably operator error not holding button down firmly). Its a huge improvement and worth it, IMO.


Next mission, correct the pinpoint fixed full volume firmware bug/feature.
I shouldn't have to fix engineering problems on a brand new machine that's been in production for three years.
I should have bought a Whites. Never had a single firmware bug/feature problem with half a dozen Whites models in 20 years.

Last edited:

Carl-NC

Bronze Member
Mar 19, 2003
1,808
1,192
Oregon & Texas
Detector(s) used
Custom Designs and Prototypes
Primary Interest:
All Treasure Hunting
Actually CC, it really is a keypad problem. We've delaminated the keypads and found corrosion problems, the keypad manufacturer has verified the defect. Adding the cap ironically solves this problem, at least if it hasn't gotten too bad.

OP
C

CC_IN_CA

Jr. Member
Jun 5, 2005
44
46
Detector(s) used
Tecknetics Eurotek Pro
Primary Interest:
Metal Detecting
  • Thread Starter
  • Thread starter
  • #4
Nice pinpoint button mod! I thought about adding a DPDT pinpoint switch similar to yours, and would use one throw to drop gain on speaker op-amp by half. I need to reverse engineer that op-amp though. That thing is so loud in pinpoint mode, and you can't turn it down. Speaker vibrates your hand! Second option would be to add a n-channel FET transistor on existing pinpoint switch to activate a resistor dropping speaker op-amp gain. Hopefully I get around to it before the speaker blows!

OP
C

CC_IN_CA

Jr. Member
Jun 5, 2005
44
46
Detector(s) used
Tecknetics Eurotek Pro
Primary Interest:
Metal Detecting
  • Thread Starter
  • Thread starter
  • #5
Actually CC, it really is a keypad problem. We've delaminated the keypads and found corrosion problems, the keypad manufacturer has verified the defect. Adding the cap ironically solves this problem, at least if it hasn't gotten too bad.

If the firmware handling debounce was robust, you would never see a problem. Problem is thumb rolls on pushbutton as you swing back and forth, and that changes the switch contact area and highly subject to microsecond make/break of switch. Without firmware change or capacitor, normal switch wear would likely cause problem to return. You don't see this problem on any other models out there. They had three years to fix this problem and my machine purchased in March of 2017 had this problem.


TheHunterGT

Bronze Member
Feb 2, 2015
1,246
1,838
Central California
Detector(s) used
Anfibio Multi - T2 Classic - F75+ - G2+....and MANY more tested and reviewed.
Primary Interest:
All Treasure Hunting
Next mission, correct the pinpoint fixed full volume firmware bug/feature.
I shouldn't have to fix engineering problems on a brand new machine that's been in production for three years.
I should have bought a Whites. Never had a single firmware bug/feature problem with half a dozen Whites models in 20 years.

As I posted in the other thread (for others reading this)...the volume on the ETP was made "on purpose" to NOT adjust with the volume. Just because a user does not like something - does not make it an engineering problem. :thumbsup: I happen to LOVE the fact it does not decrease volume. See how that works?

This is the Teknetics forum...not sure why you are talking about a Whites machine. Guess the MX Sport from Whites would have been a better choice for you. Cracked housings...firmware issues...total recall. Sounds like good fun with all the soldering and tinkering you could have done there!

You don't see this problem on any other models out there. They had three years to fix this problem and my machine purchased in March of 2017 had this problem.

Less than .5% have had issues (.5 not 5.0)...obviously not deserving of a recall or a "fix" when 99.5% have no issues. It's literally not even deserving of a glance from a business standpoint. I have read maybe 20 posts total on 3 separate forums about a PP issue on the LRP or ETP. Sucks for the guys it happens to FOR SURE...but it is not some wide spread issue you are making it out to be because you are bitter. It just does not work that way.

Rad mod all the same. Sad it could not have just focused on that instead of the agenda to bash Teknetics for what you perceive to be issues...that really aren't. :icon_scratch:

Last edited:

N5XTR

Jr. Member
Mar 5, 2016
83
120
SW Oklahoma
Detector(s) used
MX Sport
Land Ranger Pro
ProPointerAT
Primary Interest:
Metal Detecting
Let me get this straight... If you have the volume reduced to a comfortable level and hit PP the machine goes to full volume for pinpoint mode? That is just plain silly.


Carl-NC

Bronze Member
Mar 19, 2003
1,808
1,192
Oregon & Texas
Detector(s) used
Custom Designs and Prototypes
Primary Interest:
All Treasure Hunting
You don't see this problem on any other models out there.

Yep, we've made a gazillion of various models that don't have this problem, but share the same keypad code. They all have debounce, just not enough to compensate for a defective switch. And while a little more debounce timeout might fix your machine, it might not be enough for another. We've seen keypads where the PP button won't work at all, and more debounce won't solve the problem.

I'm hoping your freshly bought ETP is actually older stock, I'd sure appreciate it if you email me the serial number so I can check. Also, I can send you a new keypad, for the possibility that one day the cap ain't enough.

carl@frsttx.com


TheHunterGT

Bronze Member
Feb 2, 2015
1,246
1,838
Central California
Detector(s) used
Anfibio Multi - T2 Classic - F75+ - G2+....and MANY more tested and reviewed.
Primary Interest:
All Treasure Hunting
@N5XTR According to the smart dudes who made it...supposed to be that way.

What is silly is making it sound like the ETP is a bad machine because of such a non issue. That and making a minus 1 return rate seem like a bad thing.

If I sell 10k of something....and 50 to 60 come back. I am LOLing at talk about manufacturing and engineering issues.

I'm no marketing or engineering guy though...maybe what seems like common sense to me is not. :dontknow: I'll leave it to Carl.

Last edited:
OP
C

CC_IN_CA

Jr. Member
Jun 5, 2005
44
46
Detector(s) used
Tecknetics Eurotek Pro
Primary Interest:
Metal Detecting
  • Thread Starter
  • Thread starter
  • #10
Yep, we've made a gazillion of various models that don't have this problem, but share the same keypad code. They all have debounce, just not enough to compensate for a defective switch. And while a little more debounce timeout might fix your machine, it might not be enough for another. We've seen keypads where the PP button won't work at all, and more debounce won't solve the problem.

I'm hoping your freshly bought ETP is actually older stock, I'd sure appreciate it if you email me the serial number so I can check. Also, I can send you a new keypad, for the possibility that one day the cap ain't enough.

carl@frsttx.com

Serial number assumes they actually keep track accurately. A better way is pic of my PCB (click on pic 2-3 times to see in full size). Lower left shows version 9 of PCB designed in 2014 and date of 13 16 meaning 13th week of 2016 this PCB was made, then stuffed at a later date. The date code on Microchip 16F1939 is 1628 meaning 28th week of 2016. My Eurotek Pro bought in March 2017 couldn't be more than six months old.

I'm surprised the microcontroller is a Microchip 16F1939 and has such a fast recovery speed. Its running off internal oscillator at 32mhz max and only 16,000 words of program space (I've written code for many 14F/16F Microchip projects at work). Thought for sure it would have a DSP of some kind.

Thanks for offer of membrane keypad, but mine is brand new, and probably will sell it and get a Whites eventually.


Attachments

  • EurotekProPCB2048.jpg
    452.2 KB · Views: 1,356
Last edited:
OP
C

CC_IN_CA

Jr. Member
Jun 5, 2005
44
46
Detector(s) used
Tecknetics Eurotek Pro
Primary Interest:
Metal Detecting
  • Thread Starter
  • Thread starter
  • #11
For anyone interested in my pinpoint mode fix, here is pic of capacitor installed. I recommend a poly capacitor, but used an electrolytic capacitor as I had one laying around. Notice white stripe on capacitor faces right toward ground pin. If you use an electrolytic capacitor make sure white stripe goes to ground pin.


Attachments

  • EurotekProCAP.jpg
    67 KB · Views: 595
Last edited:
OP
C

CC_IN_CA

Jr. Member
Jun 5, 2005
44
46
Detector(s) used
Tecknetics Eurotek Pro
Primary Interest:
Metal Detecting
  • Thread Starter
  • Thread starter
  • #12
@N5XTR According to the smart dudes who made it...supposed to be that way.

What is silly is making it sound like the ETP is a bad machine because of such a non issue. That and making a minus 1 return rate seem like a bad thing.

If I sell 10k of something....and 50 to 60 come back. I am LOLing at talk about manufacturing and engineering issues.

I'm no marketing or engineering guy though...maybe what seems like common sense to me is not. :dontknow: I'll leave it to Carl.

I'd like to see a poll on a forum with experienced users. A detector newbie wouldn't have a clue what was going on in pinpoint mode, and you won't hear complaints from those folks and they are most of your sales. An experienced enthusiast (most forum users) will quickly figure out what is going on. On another forum, you counted 30 forum members reporting this failure. Poll forum members and you have a MUCH better idea of the real failure rate. My failure rate was 100%.

The ETP has the potential to be a great machine, but its firmware is not finished or debugged, IMO. It works great in discriminate mode. IMO, the four firmware issues are; 1) insufficient debounce on pinpoint button, 2) faulty depth reading, 3) failure to include pinpoint volume in volume control, 4) overload signal turns off pinpoint tone.

Last edited:

Josera69

Newbie
Jun 27, 2018
1
0
Primary Interest:
All Treasure Hunting
Eurotek Pro fix PinPoint mode

Yep, we've made a gazillion of various models that don't have this problem, but share the same keypad code. They all have debounce, just not enough to compensate for a defective switch. And while a little more debounce timeout might fix your machine, it might not be enough for another. We've seen keypads where the PP button won't work at all, and more debounce won't solve the problem.

I'm hoping your freshly bought ETP is actually older stock, I'd sure appreciate it if you email me the serial number so I can check. Also, I can send you a new keypad, for the possibility that one day the cap ain't enough.

carl@frsttx.com

Hola Carl,
Yo tengo el mismo problema con el PinPoint de mi ETP ,por favor me podría enviar un Keypad para sustituirlo,soy de España,gracias por sú atención,saludos.


maverick06

Greenie
Jan 3, 2019
10
10
media, pa
Primary Interest:
All Treasure Hunting
I know this is an older thread, but my somewhat older eurotek pro has the same problem, really annoying. I found myself mashing the pinpoint button to get it to work, with obviously no benefit. Sadly the pinpoint was really why i went with this detector vice one of the others out there. I had mine open, its an older board than the one pictured here (2012 i think, going from memory). Likewise i put in a capacitor and the issue appears to have resolved its self now, I can actually use pinpoint without issue. Of course its snow covered outside, so it wont get a real test for a while yet. Thanks much for the guide!


glenn37216

Full Member
Apr 8, 2012
164
190
Hendersonville , TN
Detector(s) used
Garrett AT PRO, FISHER F75 Limited Edition, Teknetics EuroTek Pro, Garrett Ace150, 250,400i, Minelabs E-trac, Minelabs Equinox 600, Whites 6000D, DFX Pro,Bounty Hunter All -out of text space.
Primary Interest:
All Treasure Hunting
I bought a bulk supply of 5 new ETP's from a dealer who was going out of business in TN last year. (old stock)Sold them All and every one I sold eventually had the pinpoint problem. I ended up doing the capacitor mod on all of them for free Still detect with a few of the owners and from what I'm told the mod worked great.

Last edited:

stabiel

Newbie
Apr 23, 2020
4
6
Primary Interest:
All Treasure Hunting
My Eurotek Pro works great when discriminating, but has a firmware bug in pinpoint mode.

Hello colleagues, I found the forum by means of the eurotek pro PCB image.
my pp works fine
and I have only had my eurotekpro for a month, I am very satisfied with the

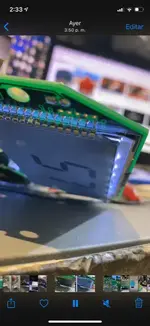

but as I went down to the beach at night I decided to make a modification to add light to the screen
just take an old damaged tablet and take apart the screen

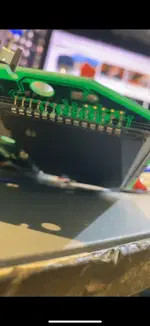

Take the whole section of the backlight to cut it to the size of my detector and look for the connection to illuminate it when you turn on the detector (the light comes on whenever the detector turns on regardless of whether it is day or night, later correct that)
3.jpg IMG_4603.PNG IMG_4601.PNG IMG_4593.jpg
I attach photos, and I am open to questions in case anyone wants to try.

But two things happen when I opened the detector, first I noticed a problem that came from the factory, for which sometimes he went very crazy (attached images also) I corrected him by placing the missing components.
1.jpg 2.jpg
And another thing that caught my attention is that, in the cables to the coil, the GND has a floating voltage of 2.4v in relation to the 9v battery.
Could someone with this detector tell me if that is normal? or the GND in the wires to the coil should be 0.0v ??


ps:
sorry for my english, I use the translator a lot
