coins down to 0.5m, large targets down to 4m

[darkkitten2000]

Hi,
imagine a detector that would be able to report large coins up to 0.5m, Coca_Cola tin down to good 1m, helmet size target to 2m and large targets down to 4m deep. And the one, that wouldn't heart the budget much. Well, here it is, the DBP2010, material would cost the builder approx. EUR 300. Wisit http://freeweb.siol.net/dzajec28 under "PI detectors" and e-mail for schematics and PCB.


regards,
d.



Amazon Forum Fav 👍

Cry Of The Eagle: History And Legends Of The Cherokee Indians And Their Buried Treasure - Grab it through Amazon!

[darkkitten2000]

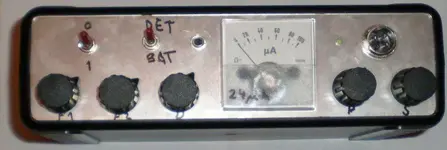

Some pics...



[Sky Pilot]

First off, Welcome to TreasureNet, DK2000!! Next: Thanks for the information and pics! I am definitely checking in on this!!

Once again, WELCOME!!! Glad to have you here!!!! Great hunting and good luck!!!! Regards, Skypilot



[darkkitten2000]

Thanks, Skypilot

if you'd need schematics and pcb feel free to e-mail me, the files a too large to post them in here .

regards,
d.



[Sky Pilot]

Thank you very much, DK2000! Cheers to you, my friend!!!
Warmest regards, Richard



[liftloop]



[darkkitten2000]

Hi,

assembled & tested modules for this device now available. Circuit adjusted for 1m x 1m coil.

regards,
d.



[Jjhjh]

HI EVRY 1



[salim rid]

Hi,
imagine a detector that would be able to report large coins up to 0.5m, Coca_Cola tin down to good 1m, helmet size target to 2m and large targets down to 4m deep. And the one, that wouldn't heart the budget much. Well, here it is, the DBP2010, material would cost the builder approx. EUR 300. Wisit http://freeweb.siol.net/dzajec28 under "PI detectors" and e-mail for schematics and PCB.


regards,
d.

مرحبا صديقي ارجو منك تنزيل المخطط وشكرا



[TheGreenBoy]

Unfortunately, i cannot understand arabic, sorry. Would you care to repeat in English?



[smokeythecat]

You might be able to copy the phrase into Google and have google translate it. Welcome!



[TheGreenBoy]

Ok, i have got the message, Salim, live your e-mal on PM, and i'll send you shematics and PCB mask for DBP2010.

Thanks Smokey.



[Brave]

Hello
does anyone has Gerber file of this metal detector ?



[TheGreenBoy]

No, but you can have the bitmap PCB image. I draw this yeares ago, at a time makeing your own PCB was pretty much the only way, so i printed it on a foil and use UV light to make the plate.
