Excal control boards

[toddbbq]

Solved...Excal control boards

Anybody out there good at identifying excal control boards as I have one that is in a blue excal 1000 tube but I think it is actually from the original sword.







Solved Thanks OBN



Amazon Forum Fav 👍

DR.ÖTEK Metal Detector, Waterproof Gold Detector, Pinpoint & Terrain Modes, Professional Metal Detector - Grab it through Amazon!

[Treasure_Hunter]

The sword PCB will not fit inside the blue excal or excal 2 housing with out modifying it, the blue excal PCB and excal 2 pcb will also not fit in sword housing with out modifying it too.



[toddbbq]

I have a sword housing with a blue excal control board that is fully assembled and working I guess somebody named Dave out of boca raton FL put it together. I am afraid to take it apart to clean and reseal it as I hope I can reassemble it lol



[OBN]

I have a sword housing with a blue excal control board that is fully assembled and working I guess somebody named Dave out of boca raton FL put it together. I am afraid to take it apart to clean and reseal it as I hope I can reassemble it lol

That Dave was a crazy guy but he did leave us with a few interesting "Discoveries"



[cudamark]

That Dave was a crazy guy but he did leave us with a few interesting "Discoveries"

Such as?



[OBN]

Such as?

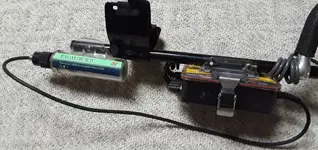

I think maybe his best was hooking up the excalibur battery setup to the Whites DF...


A plus for then you can run higher voltage to the DF, 16.9v LIPO, normal is 12v..



[cudamark]

The Dual Field doesn't have in internal voltage regulator? Sounds like an easy way to fry the innerds.



[OBN]

The Dual Field doesn't have in internal voltage regulator? Sounds like an easy way to fry the innerds.

She runs Hot but she works...



[bklein]

The lipo I use for my excal in that housing is 11.1V. Did he mod that too - or is it supposed to be higher voltage?
