O E. RAAB May 27, 1930.
BOTTLE Filed Nov. 9, 1927 Patented May 27, 1930 OWEN E. RAAIB, OF SEATTLE, WASHINGTON I mm Application filed November 9, 1927. Serial No. 282,020.

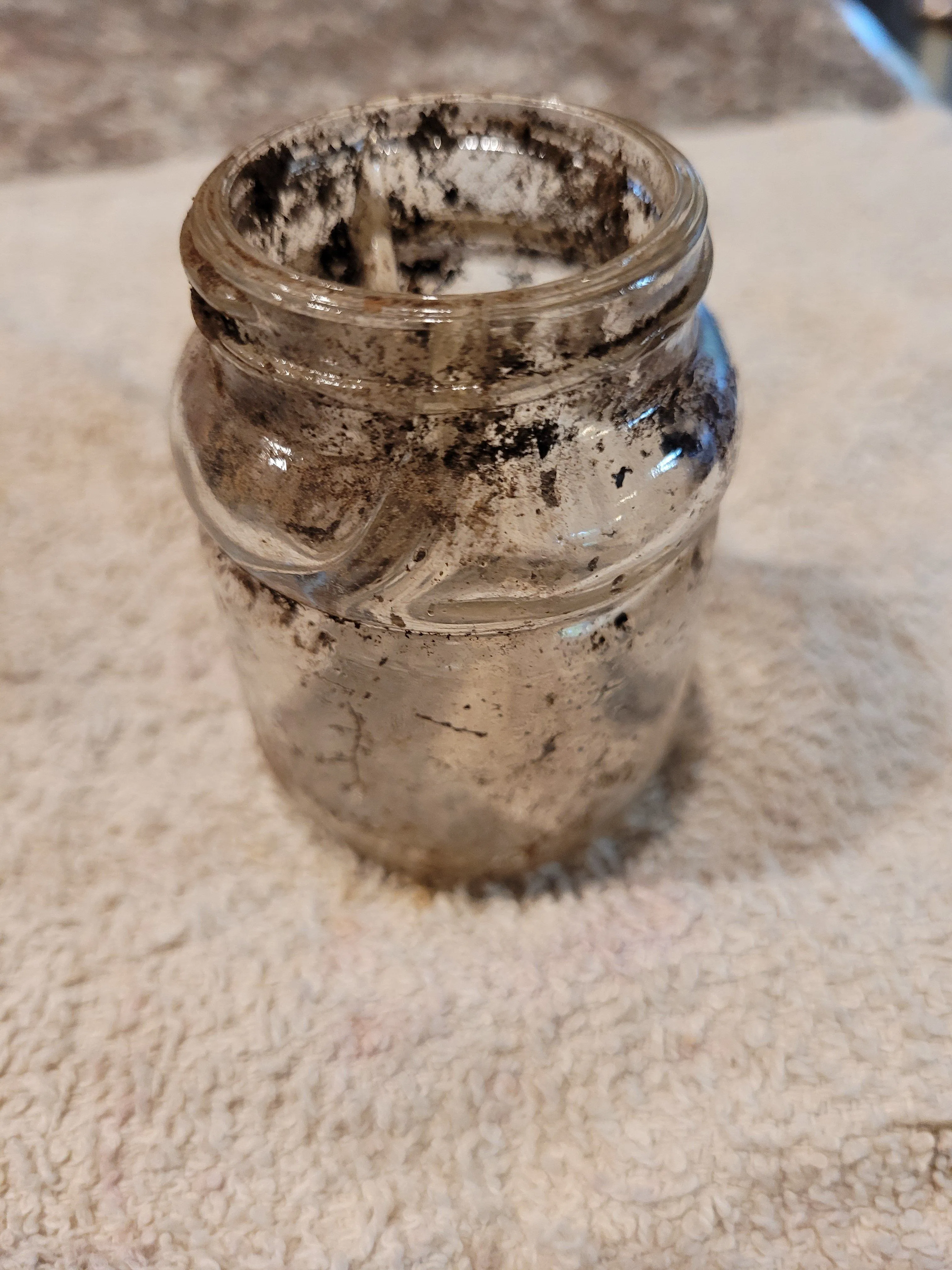

Bottle and well in which the well is shaped and proportioned, and so positioned Within the bottle that is especially adapted to serve as an ink well into which a pen may be.
dipped, the well being small and narrow so that a small amountof ink will fill it to a depth sufiicient to submerge the'entire point portion of the average pen when the pen 1s inserted therein and the upper edge of the well being positioned and arranged so as to serve as a stop against which the end of the pen holder may strike to prevent the pen from I being dipped too deep; to prevent the point of the pen from striking the bottom of the well and to prevent the end of the pen holdor from dipping into the ink.
Another object is to provide a combined bottle and well in which the well is quickly and easily filled by applying the cap or cork and tilting or inverting the bottle.
Another object is to curve and slope the side wall which divides the well from the remainder of the bottle in such a manner as to make is possible to pick up, in the well, the last ink in the bottle when the bottle is almost empty and to further curve said side wall in such a manner that it will facilitate the flowing of ink into thewell and at the same time afford the maximum amount of room or clearance through which a fountain pen may be inserted into the bottle for the purpose of filling.
A still further object is to provide a well of this nature having two or more notches in its top edge which permit the well to fill readily when the cap or stopper: is placed thereon and caused to rest on the top edge of the well and the bottle is tipped sidewise or partially inverted.
