Converting Bazooka Gold Ttrap Miner sluice to high banker???

[Vance in AK]

Has anyone converted their bazooka Miner sluice to a highbanker?
As I recall Good Guy converted a smaller Bazooka. I have the 48" Miner and would like to try the same with it. A temporary conversion so I can switch it back to a stream sluice. I have had it for 3 yrs & never used it yet but as I stared at it yesterday & was playing with it & remembering it's bulk & what it weighed, I thought portability is NOT it's strong point & it might make a great highbanker.
If anyone has done it I would love to know what you used for a pump etc. PICTURES would be a HUGE help.
Good Guy, if you could direct me to your old thread it would be wonderful :-)



Amazon Forum Fav 👍

How to Research for Treasure Hunting and Metal Detecting From Lead Generation to Vetting - Grab it through Amazon!

[N-Lionberger]

I haven't tried it personally but I have seen a youtube video of a very simple conversion I have been tempted to try.



[Vance in AK]

Thanks!Q
Doesn't get much simpler than that!!!
I'm thinking of something MUCH more complicated :-)
Hopper with spray bars to provide flow over sluice, insert that goes in lower pickup with incoming water to supply water & pressure to slurry chamber, legs or stand...



[OwenT]

I did something similar with my sniper a few years ago. I think I used it twice and I caught some gold but I didn't really test it a lot more. The bottom line is it takes a good amount of water but if you're going to be using a miner I expect you already know electric isn't probably a good option.



[Goodyguy]

Has anyone converted their bazooka Miner sluice to a highbanker?
As I recall Good Guy converted a smaller Bazooka. I have the 48" Miner and would like to try the same with it. A temporary conversion so I can switch it back to a stream sluice. I have had it for 3 yrs & never used it yet but as I stared at it yesterday & was playing with it & remembering it's bulk & what it weighed, I thought portability is NOT it's strong point & it might make a great highbanker.
If anyone has done it I would love to know what you used for a pump etc. PICTURES would be a HUGE help.
Good Guy, if you could direct me to your old thread it would be wonderful :-)

No link sorry.
But it's a fairly simple conversion.

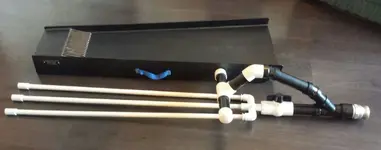

You will need to fabricate a 5 tube manifold to run water into the trap with it's own control valve.
or else figure out a way to make a removable water tight cover to close off the end of the scoop and install a control valve into it.
As far as the pump goes I used a 2" pump from harbor freight on mine which would also provide enough flow to run the 48" miner.


See if these photos give you a better idea.........





Please post photos of your conversion when finished.

GG~



[Vance in AK]

I did something similar with my sniper a few years ago. I think I used it twice and I caught some gold but I didn't really test it a lot more. The bottom line is it takes a good amount of water but if you're going to be using a miner I expect you already know electric isn't probably a good option.

Thanks Owen! Again, much simpler than I had imagined but simple is good!!!



[Vance in AK]

No link sorry.
But it's a fairly simple conversion.

You will need to fabricate a 5 tube manifold to run water into the trap with it's own control valve.
or else figure out a way to make a removable water tight cover to close off the end of the scoop and install a control valve into it.
I used a 2" pump from harbor freight on mine which would also provide enough flow to run the 48" miner.


See if these photos give you a better idea.........
View attachment 1887220 View attachment 1887222 View attachment 1887223


View attachment 1887219 View attachment 1887221

Please post photos of your conversion when finished.

GG~

GG, this is more what I was thinking and those are the pics I remember. Thank you!
I was thinking more of the removable cover to close off the end of the scoop. Easiest example being a 2x4 with tapered ends cut to fit tightly and held in with a couple screws. A hole cut in the center & a 2" floor flange with the proper fitting for the pressure hose to feed, or if I get fancy I can fabricate it some aluminum plate. Then a hopper assembly with spray bar so I have 3' of slickplate in the sluice with material classified down to .5" or so... Make sense?
Also, did you make any mods to the inside of your Kenne hopper? I have one on my A52 & have never been pleased with the design of the grizzly/spray bars.



[N-Lionberger]

OwenT what kind of pump were you running?



[Goodyguy]

GG, this is more what I was thinking and those are the pics I remember. Thank you!
I was thinking more of the removable cover to close off the end of the scoop. Easiest example being a 2x4 with tapered ends cut to fit tightly and held in with a couple screws. A hole cut in the center & a 2" floor flange with the proper fitting for the pressure hose to feed, or if I get fancy I can fabricate it some aluminum plate. Then a hopper assembly with spray bar so I have 3' of slickplate in the sluice with material classified down to .5" or so... Make sense?
Also, did you make any mods to the inside of your Kenne hopper? I have one on my A52 & have never been pleased with the design of the grizzly/spray bars.

Closing off the end of the scoop should allow for a more even flow into the fluidizing tubes once the compartment is filled
I experimented with several spray bar and grizzly arrangements including creating the hopper from scratch. I also created an attachment for dredging.

Would not recommend dredging into any size Bazooka as the flow required to dredge would overwhelm the fluid bed and lead to scouring.
That is the problem I encountered with mine and was not able to solve it without a total redesign. Which led me to create the "super fluid bed high banker dredge" pictured below.....





GG~



[Vance in AK]

I like that!!!

GG, so in your opinion is it a project worth the time or should I just modify the Hopper on my A52 highbanker (Build a replacement kind of like the Gold Gog & maybe install that cheap green rubber matt I bought because you bought it :-) ) or pursue this idea? Production/catch rates obviously being the primary criteria (right now I don't need any projects just for the projects sake.)?



[Goodyguy]

I like that!!!

GG, so in your opinion is it a project worth the time or should I just modify the Hopper on my A52 highbanker (Build a replacement kind of like the Gold Gog & maybe install that cheap green rubber matt I bought because you bought it :-) ) or pursue this idea? Production/catch rates obviously being the primary criteria (right now I don't need any projects just for the projects sake.)?

If you add the highbanker mods to the Bazooka you will be able to regulate the flow into your sluice and gold trap individually to fine tune your results. Comes in very handy when the water flow in the stream does not fit into the window of the Bazookas optimal performance range. Also you can run the Bazooka almost flat which enhances it's performance as well.

Personally, I believe that the 48"miner with the highbanker mods will out perform the A52 highbanker both in production as well as recovery. (even with the cheap green mat installed in the A52)

GG~



[Vance in AK]

If you add the highbanker mods to the Bazooka you will be able to regulate the flow into your sluice and gold trap to fine tune your results. Comes in very handy when the water flow in the stream does not fit into the window of the Bazookas optimal performance range. Also you can run the Bazooka almost flat which enhances it's performance as well.

Personally, I believe that the 48"miner with the highbanker mods will out perform the A52 highbanker both in production as well as recovery. (even with the cheap green mat installed in the A52)

GG~

OK, you have given me a winter project
Only 5 months of winter left so I better get on it!



[Goldwasher]

Hi, I am the Mayor of Clog City.
The bus to Waste of Time ave. will be here shortly.



[Goldwasher]

I haven't tried it personally but I have seen a youtube video of a very simple conversion I have been tempted to try.

Running classified material smaller than the grizz...in a box designed to self classify....

Hey look at the crazy turbulence in the trap...I'm sure thats not blowing out gold at all
