How do you know when to use a certain coil

Joined
Oct 19, 2007
Messages
656
Reaction score
13
Golden Thread
0
Location
born in 3 sisters, tx. now living west of tilden
Detector(s) used
X-Terra70, X-Terra 50, Ace250, Ace150, GTI 1500,GTA 1000 Ultra, Tejon, Vaquero
Hi when do you know what the proper coil is when you go out metal detecting

What Factors Come Into Play
#1 Mineralization
#2 Target your searchin for
#3 Trash in the area

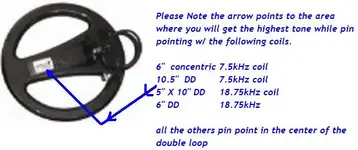

Concentric:

Highest tone will come from the center & should be checked by useing
the X Method w/ a concentric coil.

Double D:
Coil Layout.webp
HF Xterra coils.webp
Coil Layout.webp

The 10.5" DD 7.5kHz coil transmits like the 6" HF DD Gold Coil

Minelab suggest you useing the Concentric 7.5kHz & 18.75kHz
coils on land and at the beaches.

Double D coils work better on Highly Mineralized Ground than the
Concentric coils you get better seperation.

Dave


Attachments

  • HF Xterra coils.webp
    HF Xterra coils.webp
    24.8 KB · Views: 220
  • XT70 Emission Fields.webp
    XT70 Emission Fields.webp
    14.5 KB · Views: 234
  • X-Terra 70 Coils.webp
    X-Terra 70 Coils.webp
    20.1 KB · Views: 223
it really depends on where you're going. if you suspect it has a lot of trash go with a double D or if you have good separation use a concentric.
when I go out I take both, if I need to change, it only takes a couple of minutes
