ETI561, a BFO revitalized, beginer's project

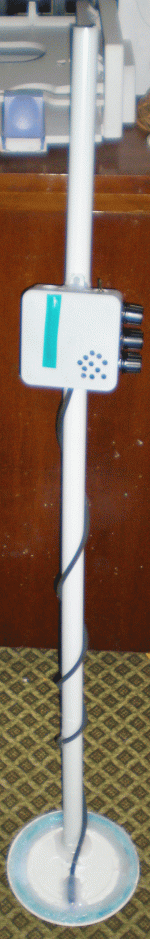

Here goes another one in my collection, a fairly good and simple, chip BFO siutable as a begginer's project. I'll use this one as a shallow skimmer for recently lost items.

Have fun,
d.

feel free to e-mail for schematics and PCB



Amazon Forum Fav 👍

How to Research for Treasure Hunting and Metal Detecting From Lead Generation to Vetting - Grab it through Amazon!

[darkkitten2000]

Re: ETI561, a BFO revitalized, beginer's project

Hi,

assembled modules available.

d.



[NGE]

Re: ETI561, a BFO revitalized, beginer's project

Is it possible to make a BFO machine that would detect much deeper (say 6 - 8 inches deep) I have always wondered that since 1960 when I had my first Radio Shack detector........NGE



[darkkitten2000]

Re: ETI561, a BFO revitalized, beginer's project

this one can detect a very large target (refrigerator) at 70cm in air, a 10cm diameter target at 20cm (soil) and 20cm diameter target at 25cm (soil), 1 EUR coin at 10cm (soil). Are we in range yet? The drift is however always present (needs temporary readjusting i.e. on every 30 to 60 seconds), and it useless in weat grass.

regards,
d.



[NGE]

Re: ETI561, a BFO revitalized, beginer's project

Yes, I seem to remember the problem with drift. On my R.S. machine it was like re-adjusting every 5 to 10 seconds.......NGE



[Frankn]

Re: ETI561, a BFO revitalized, beginer's project

I use to love that motor boating sound of the BFO. I had an old one for one of my first detectors. It was so old it had tubes. It would only reach about 2".
Your circuit, if small enough, would make an interesting pinpointer. You only need about 1" reach, and the motor boating sound variance would tell you when you got closer. It would be more accurate than the hit or miss of present day pinpointers.

​
