Strange musical reed, what instrument?

[DiggerBug]

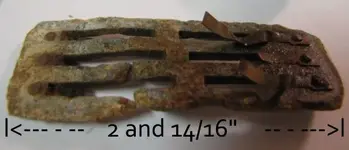

I dug this strange reed the other day. It has the same little metal things as a harmonica reed, but there are two sets, one on each end and they are placed on opposite sides of the metal part. The base looks to be lead. It is 2 14/16" long.
Any help would be greatly appreciated.



Amazon Forum Fav 👍

Upgraded Night Vision Monocular Digital Infrared Monocular Telescope for 100% Darkness with 8X Zoom - Grab it through Amazon!

[NOLA_Ken]

squeeze box?



[DiggerBug]

Thanks NOLA_Ken, but I believe a sqeeze box had long sinlge reeds.



[mojjax]

I'm thinking maybe part of a pitch-pipe



[Bramblefind]

This site has some interesting info about something called the Aeolina which was invented around 1820 -

http://www.patmissin.com/history/aeolina.html



[Breezie]

I think they are accordion reeds. Nice find, Breezie



[NOLA_Ken]

Probably not what it is, but have you though of reed valves for a two stroke engine?



[DiggerBug]

Mojjax, I'll check that out. Thanks for the suggestion.
Bram, cool site. Thanks so much.
Breezie, I'll look at those too. Thanks
NOLA, I've never heard of those. I'll check it out.

Thanks ya'll for helping!!!!!!!!!!



[creskol]

That is a Civil War era 3-reed concertina reedplate. Each three reed group is a chord.



[DiggerBug]

OMG! creskol! I thought they were all slender, single reeds. Research time!
THANK YOU!



[DiggerBug]

I finally found a picture of one! They are the ones in the top right corner.

Thanks again everyone!



[Kiwijohn]

I finally found a picture of one! They are the ones in the top right corner.
thanks again everyone!

I collect old button accordions.
Your photo shows the treble end (on the left) and the bass end (on the right) of an early 4-stop
button accordion.
The 3-reed plates you found seem to be a match for the ones in the photo.
Because the accordion will play a note on the push, AND the pull of the bellows, the non-playing
reeds need to be blocked, so air will not be wasted flowing through them.
The brown strips you see covering part of the reed plates are the valves that do this. They are made of leather, later made of teflon. You can see them doing the same job on the treble end, covering single reeds.
Where did you find the photo? I would be interested in identifying the acccordion.

Oh.. nice find and nice id from creskol



[DiggerBug]

Kiwi, here ya go. What a cool thing to collect!

http://en.wikipedia.org/wiki/File:Reedsinset.jpg



[Bigcypresshunter]

I collect old button accordions.

I purchased WWI folding reed organ for $10 in pretty good shape but the bellows is rotten.
http://forum.treasurenet.com/index.php/topic,142217.0.html



[Staci Cloughley]

Hi I found one also...any clues as to age or instrument?



[Bonnie2012]

Hey there we found one but it has 4 reeds on each side. Could you tell us if it is the same thing and how old it might be?



[Bonnie2012]

Hey there...i found one but it has 4 on each side. It does not fold like the one pictured below in this thread. Have you found any more info...thank you
