rock crushing

[elkoff]

Hey everybody I was just wondering if their is a way to crush ore with something homemade cause the rock crushers on the market seem a wee bit expensive? I am thinking about a 50 mesh crush size or maybe smaller. I have know clue with ore crushing, and if somebody has any ideas to share, that would be awesome. Also if somebody has any plans for a mechanical rock crusher, would be sweet... Thanks



Amazon Forum Fav 👍

How to Research for Treasure Hunting and Metal Detecting From Lead Generation to Vetting - Grab it through Amazon!

[prospect007]

I sent u a pm, let me know if u got it.



[Goodyguy]

You may like one of these easy to make rock crushers..........
http://www.treasurenet.com/forums/gold-prospecting/188969-portable-rock-crusher.html#post1980956

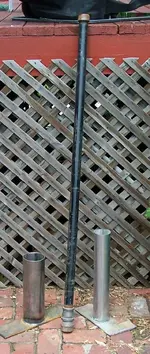

Here is my 3" and my 4" made from scrap exhaust tubing and 1/4" steel plate..........

For the ramrod Harbor Freight sells a nice 17 Lb. Posthole Digging Bar with Tamper that would work great.





Go for the Gold,
GG~



[Herby D]

How about one that's a little quieter..My neighbors are complaining..

Most important two letter word sentence.. "If it is to be, it is up to me"



[russau]

I made several of these rock crusher like GG has posted and ive made one that is made from a 8 inch diameter steel pipe and has a 3/4 steel rod going through it and has hardened steel chains attached to it and is driven with a 1/3 hp electric motor the pully ratio is 2:1. I could add 3 inch material to it and it would powder the rocks. yep its loud! and I wouldn't recommend using it in a apartment complex!



[russau]

several threads down look for GGs post on his flail crusher.



[Hardrocker]

I bought a jaw crusher on eBay for around $250 a couple of years ago. You can go pretty fine with that. It crushes a good percentage of the rock to powder, but you would need to screen it to get out larger uncrushed pieces. You also need at least a 3/4 horse electric motor to run it.



[Buck Blades]

You might try one of these.

They work with your air hammer and they work not bad. From a place called Back Yard Prospector (I think). $95 though.



[stanowen]

You could always build something like this:



[russau]

well we cant be lucky all the time! ive made several of the types of crushers and they are very good!



[911Met]

Hello small hard rock miners, for a low priced jaw crusher see https://www.911metallurgist.com/blog/homemade-rock-crusher It is a kit you assemble yourself.

Which one of the 2 larger small jaw crushers would you want in kit? i have 2 larger models.



[Kenmitch]

How about one that's a little quieter..My neighbors are complaining..

Most important two letter word sentence.. "If it is to be, it is up to me"

Crushing rocks and quiet don't really go together.

Budget? How many rocks and how fast you want to crush them? The tube style crusher combined with a hydrolic press I'd imagine would be about as quiet and cheap as it gets. Hand pumping the press could be a little tiring in the end. If a little more noise is acceptable they sell pneumatic presses but would require a air compressor also.



[kcm]

Crushing rocks and quiet don't really go together.

Budget? How many rocks and how fast you want to crush them? The tube style crusher combined with a hydrolic press I'd imagine would be about as quiet and cheap as it gets. Hand pumping the press could be a little tiring in the end. If a little more noise is acceptable they sell pneumatic presses but would require a air compressor also.

You could also use a hydraulic power pack. It runs on electric (12V or 120V, depending on model) so is not as loud as an air compressor. That said, why not also consider adding a sound-dampening enclosure to your crusher? There are some very good sound dampening materials out there, but one of the least expensive and probably the most common is ordinary fiberglass insulation. You can encase the insulation in heavy (6 mil or better) plastic to prevent exposure to the fibers.



[solarsmith]

my jaw crusher is very quiet. it has a 1/2 hp electric motor and an opening of 5 by 8 inches Its the ball mill that is the noise maker. 110 db at 4 ft



[Mad Machinist]

Hello small hard rock miners, for a low priced jaw crusher see https://www.911metallurgist.com/blog/homemade-rock-crusher It is a kit you assemble yourself.

It would be nice if you sold the larger ones in kit form. If you could do that, I would buy one of them just to save myself the hassle of building from scratch.



[911Met]

Which of the 2 larger crushers would you want in kit?



[Mad Machinist]

Which of the 2 larger crushers would you want in kit?

Most likely something in the 2x3 to 3x4 range. Lots of us are mechanically inclined and can weld. Just a lot of people short on spare cash right now.



[911Met]

OK thanks for the input. I'll start with a small jaw rock crusher kit for the 2 x 3. Stay tuned...



The 3 x 4 needs some lathe work... I need to work this out as not every has one of those.



[Mad Machinist]

OK thanks for the input. I'll start with a small jaw rock crusher kit for the 2 x 3. Stay tuned...



The 3 x 4 needs some lathe work... I need to work this out as not every has one of those.

What needs the lathe work? The eccentric? What about offset drilling the large journal and pressing the shaft through? You could stick the shaft in the freezer overnight to shrink it enough that it should slide through the large journal. You only need a .0005 interference fit to make the journal solid on the shaft. It will not move.
