What better subject for my final project for CAD Class......

[mighty_mace]

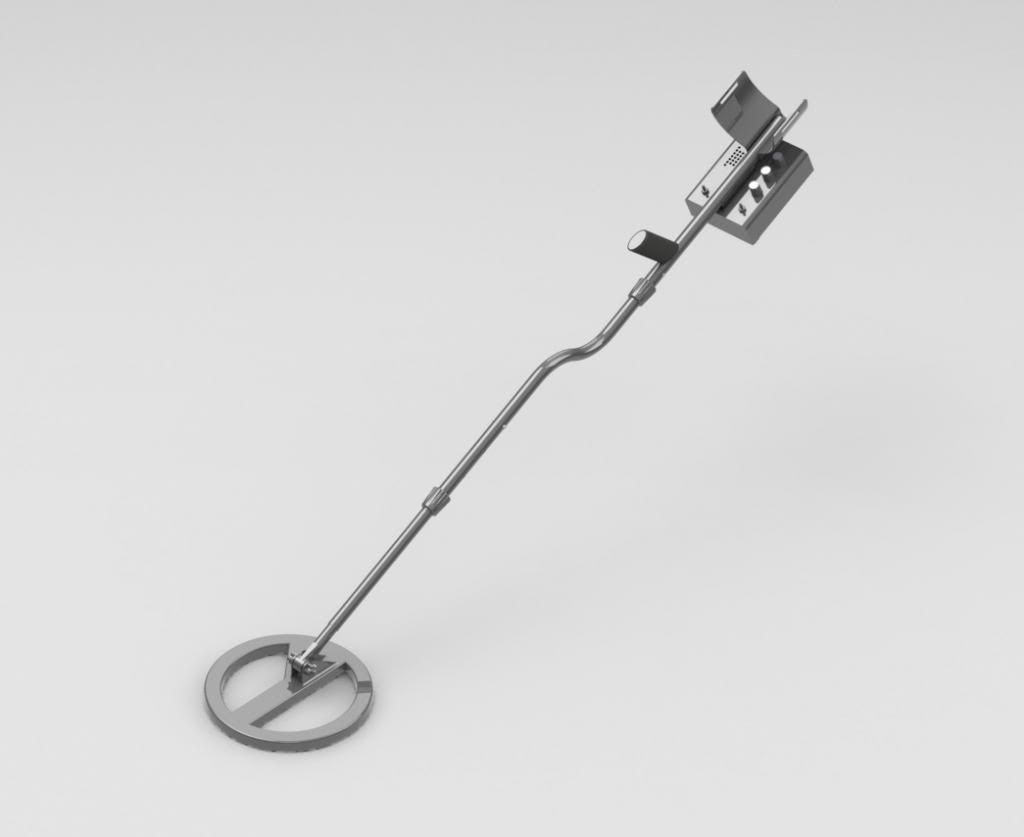

Home with my little boy who is sick today and had a chance to knock out the majority of my final project for a CAD class I'm taking toward a mechanical engineering degree. Figured I'd model my MXT! Everything drawn in Solidworks. Having a blast going about it, fun stuff.



Amazon Forum Fav 👍

Agony and Death on a Gold Rush Steamer: The Disastrous Sinking of the Side-Wheeler Yankee Blade - Grab it through Amazon!

[Coldshuz]

What? No wire or 3D views kidding.



[jeff of pa]

cool



[DeepseekerADS]

Excellent job - and after 30 years of CAD, I may just be qualified to say that!



[packerbacker]

trigger??



[mighty_mace]

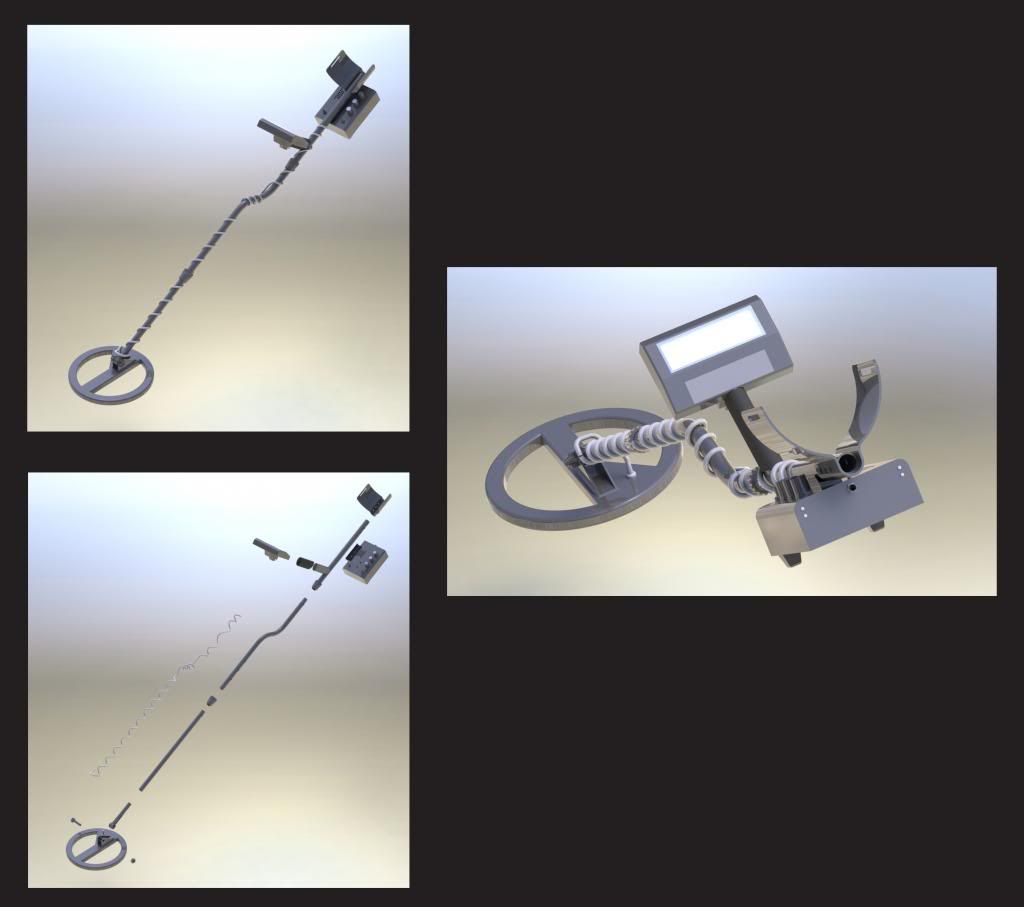

Yea it is only about 80% complete....I was going to wait and do the rest in class since we were being allotted time but ended up doing the display assembly and started on the wire. Guess I'll find something else to model in class. Maybe make some different coils I'll post an exploded view and updated pic once complete.



[mighty_mace]

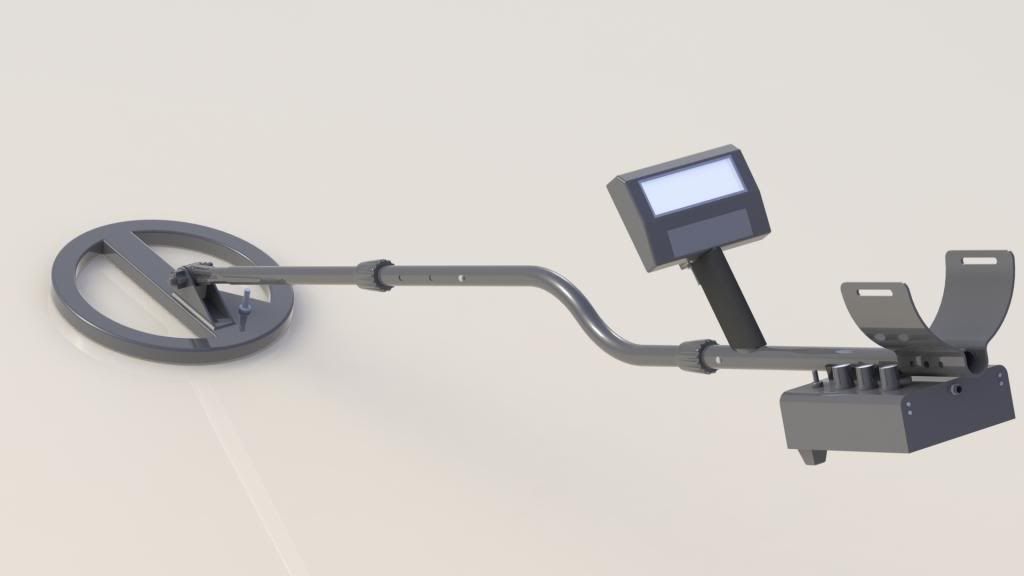

Here's another angle with the display:



[packerbacker]

I see it now!



[mighty_mace]

Finished up the wire. Forgot to make a plug for the end of the rod, as well as the hardware to hold on the arm cuff. Adding those and she should be ready to submit. Fun stuff.
